Envoy shared memory turns a compromised Pod neighbor into a sidecar risk

Security researchers at X41 D-Sec say Envoy’s hot-restart shared-memory file can become a bridge from one compromised container into an Envoy sidecar when both run in the same Kubernetes Pod. The important qualification is architectural: X41’s finding depends on another container being able to read and write Envoy’s file in /dev/shm, typically because that container is root or uses the same numeric UID as Envoy.

That makes this less a universal Envoy vulnerability than a sharp demonstration of a Pod-level trust boundary. X41 says Envoy’s maintainers closed its private report as not a security issue because Envoy restricts the file to its own user inside a container. The researchers’ counterpoint is that those permissions may not isolate containers sharing a Pod.

What the proof of concept shows

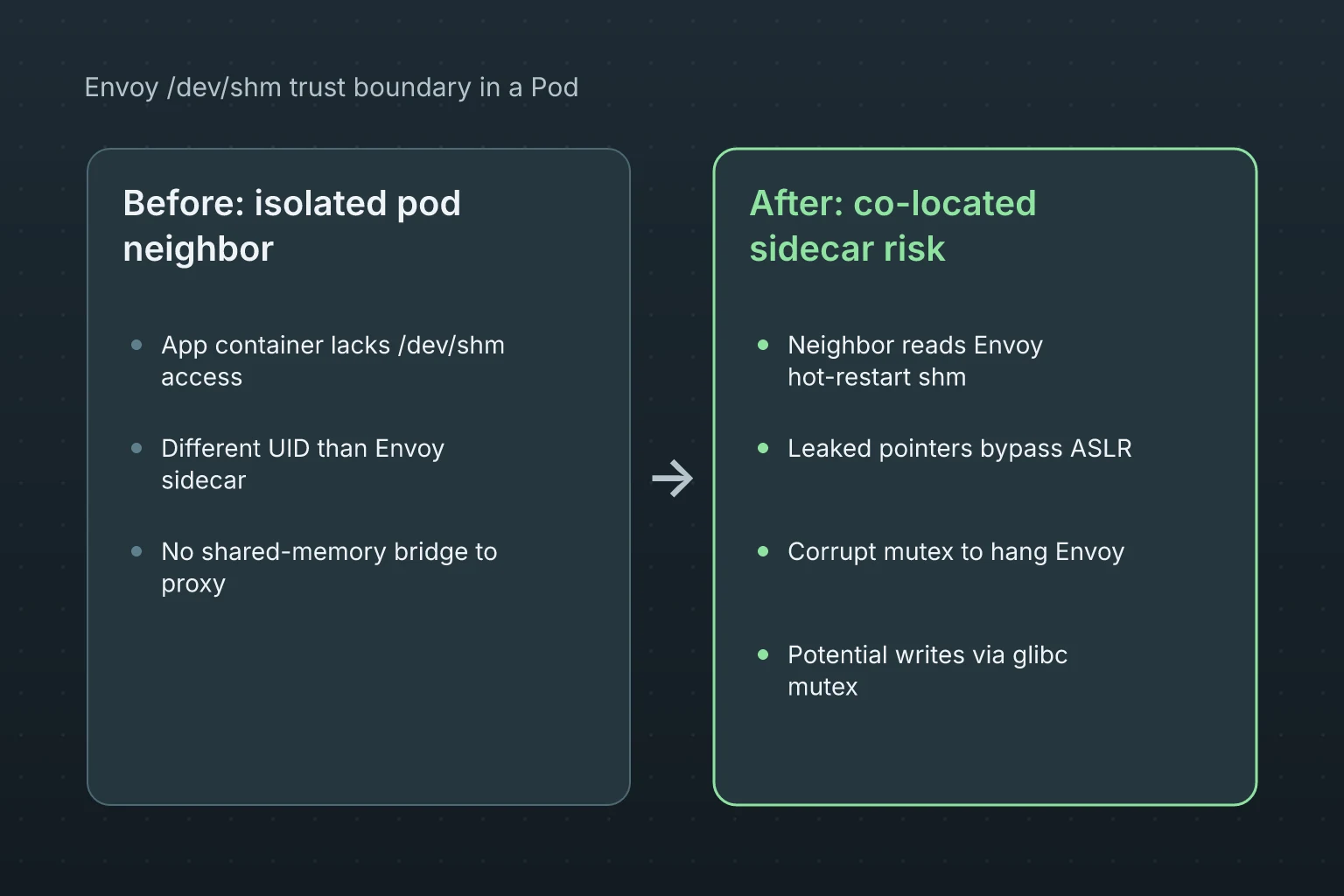

Envoy uses file-backed shared memory for hot restart, which lets processes coordinate while reloading configuration or replacing a binary without dropping connections. X41 found that the shared region includes robust pthread mutexes whose linked-list fields contain live pointers into Envoy’s address space.

According to the researchers, a neighboring container with access to that file can read the pointers to bypass address-space layout randomization. It can also corrupt the mutex state to hang Envoy, or alter linked-list pointers so that glibc performs attacker-directed writes when Envoy unlocks a mutex. X41 demonstrated the pointer leak and write primitive against Envoy 1.38.3 and 1.39.1, but it did not build a full code-execution exploit.

The threat model therefore has several gates: an attacker first compromises another container in the Pod; that container can reach the same /dev/shm; it has root or Envoy’s UID; and the Envoy process exposes the hot-restart file. Only then does the research provide a path toward the sidecar.

Why sidecar placement matters

The potential gain comes from differences in privilege inside one Pod. X41 notes that an Envoy sidecar may hold service-mesh identity, mTLS client certificates or access to upstream services that the application container does not have. If teams place a lower-trust workload beside such a proxy, successful movement into Envoy could turn an application compromise into access backed by the proxy’s identity.

That conclusion should not be stretched into a claim that every Envoy or service-mesh deployment is exploitable. The published work describes one research team’s proof of concept, says exploitation value depends on the surrounding architecture and reports no CVE or upstream patch at publication time.

Checks for platform teams

X41 proposes two direct mitigations. If hot restart is unnecessary, start Envoy with --disable-hot-restart; without the shared-memory file, this path is absent. Otherwise, mount a separate memory-backed emptyDir at /dev/shm in each container rather than relying on the Pod-wide default.

Platform teams should also inventory Pods where an application, init container or debug sidecar sits beside Envoy, then compare UIDs, root privileges and access to /dev/shm. The broader design test is simple: if compromising any container in a Pod would make the proxy’s credentials or network reach unacceptable, those containers should not be modeled as separate security domains. X41 also cautions that placing the Pod in a Kata microVM does not separate containers inside that Pod from one another for this shared-memory path.
