How Red Hat’s multimodal OpenShift AI monitor connects training, tracking and chat

Red Hat has published an end-to-end OpenShift AI quickstart that is more useful as an architecture study than as another object-detection demo. The project connects data labeling, custom model training, model serving, video tracking, durable event state and a natural-language interface in one deployable system. Its example is workplace compliance, but the deliberately generic data model also supports wildlife, traffic, warehouse and production-line monitoring.

Follow the system boundary, not only the model

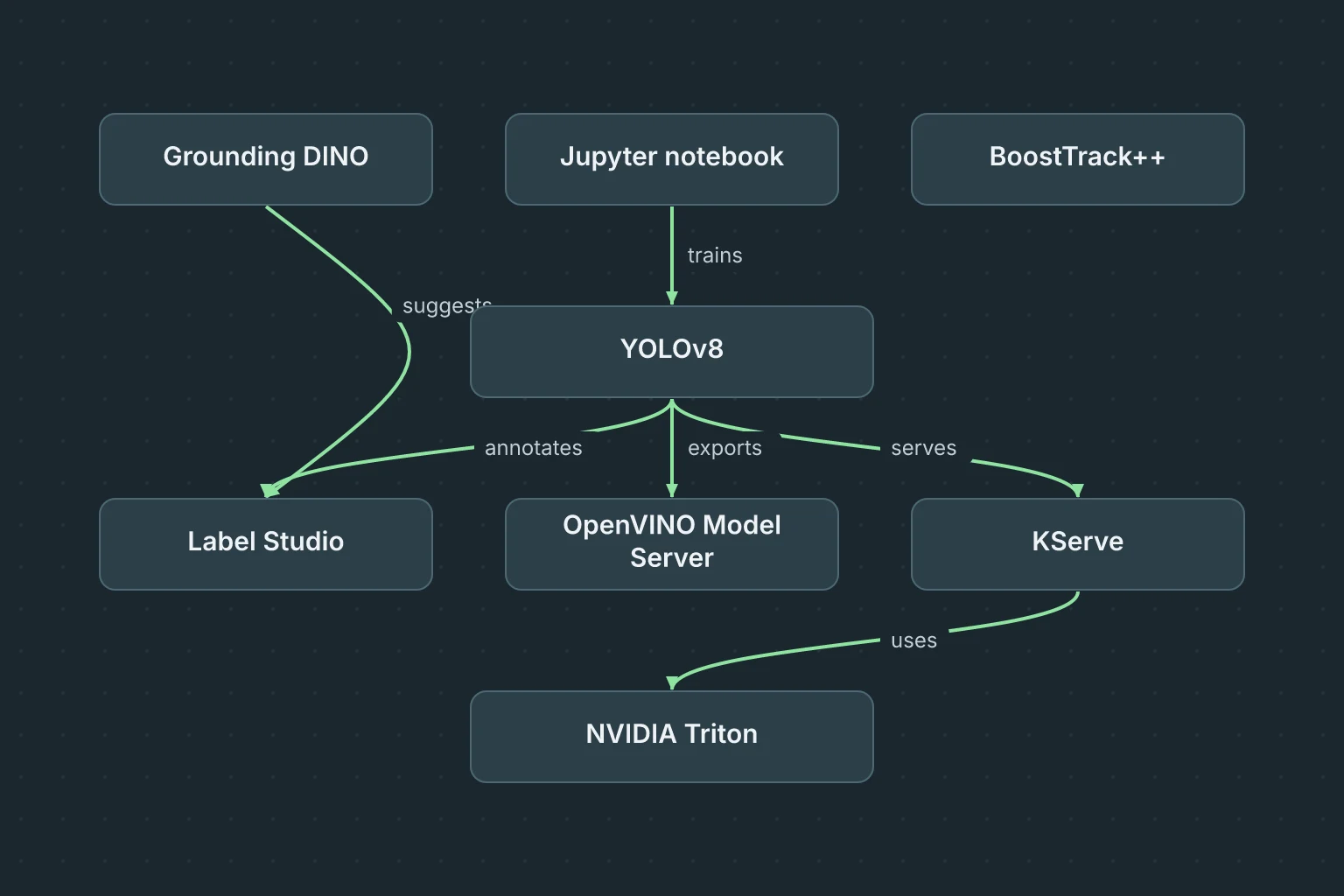

The training path starts with YOLOv8. Teams can use its pretrained COCO classes directly or fine-tune it for domain-specific objects such as hardhats, safety vests and masks. An integrated Label Studio instance provides browser-based annotation, while optional Grounding DINO assistance produces initial bounding boxes for human review. A Jupyter notebook covers dataset organization and transfer learning; Red Hat describes a Kubeflow pipeline as a logical next step, but is explicit that the quickstart does not implement it.

Serving is hardware-aware. CPU deployments export the trained weights for OpenVINO Model Server. GPU deployments use KServe with NVIDIA Triton, with both reached over gRPC through a backend abstraction. That choice lets application code remain independent of the selected serving runtime and allows multiple models to be switched at runtime.

The video pipeline accepts RTSP streams, MinIO-hosted MP4 files and local files. Worker threads batch frames before inference, then apply confidence filtering, coordinate conversion and non-maximum suppression. BoostTrack++ associates detections across frames. The design stores state changes rather than every frame: PostgreSQL records tracks and observations, with flexible JSONB attributes instead of scenario-specific columns. That is the project’s important systems decision, because it keeps evidence queryable without turning the database into a frame archive.

Treat conversational access as a security boundary

A LangGraph layer adds chat and alerts over the stored observations. The project exposes a read-only PostgreSQL MCP tool, and its query path injects active-video scoping into generated SQL. That is worth copying: a natural-language interface should not silently widen the user’s data scope merely because the model can formulate SQL.

For a practical evaluation, platform teams should first run the Podman Compose stack locally, then use the supplied Helm deployment for OpenShift. Test CPU and GPU serving separately, measure batch latency under the expected number of streams, and inspect what is written when tracked attributes change. Before adapting the pattern to real facilities, teams still need retention rules, access controls and a review of camera and worker privacy. The quickstart demonstrates the technical chain; it does not remove those operational obligations.
